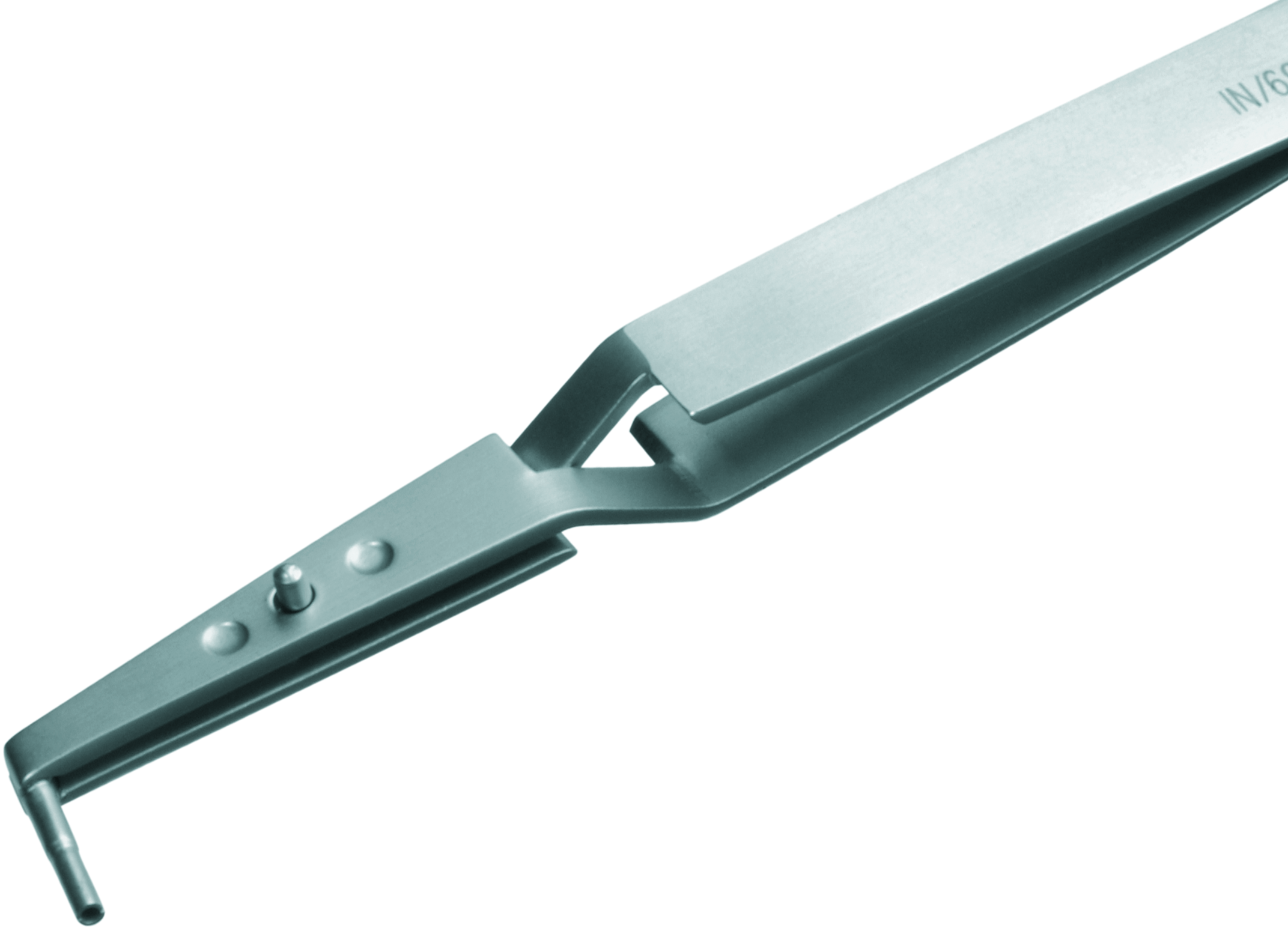

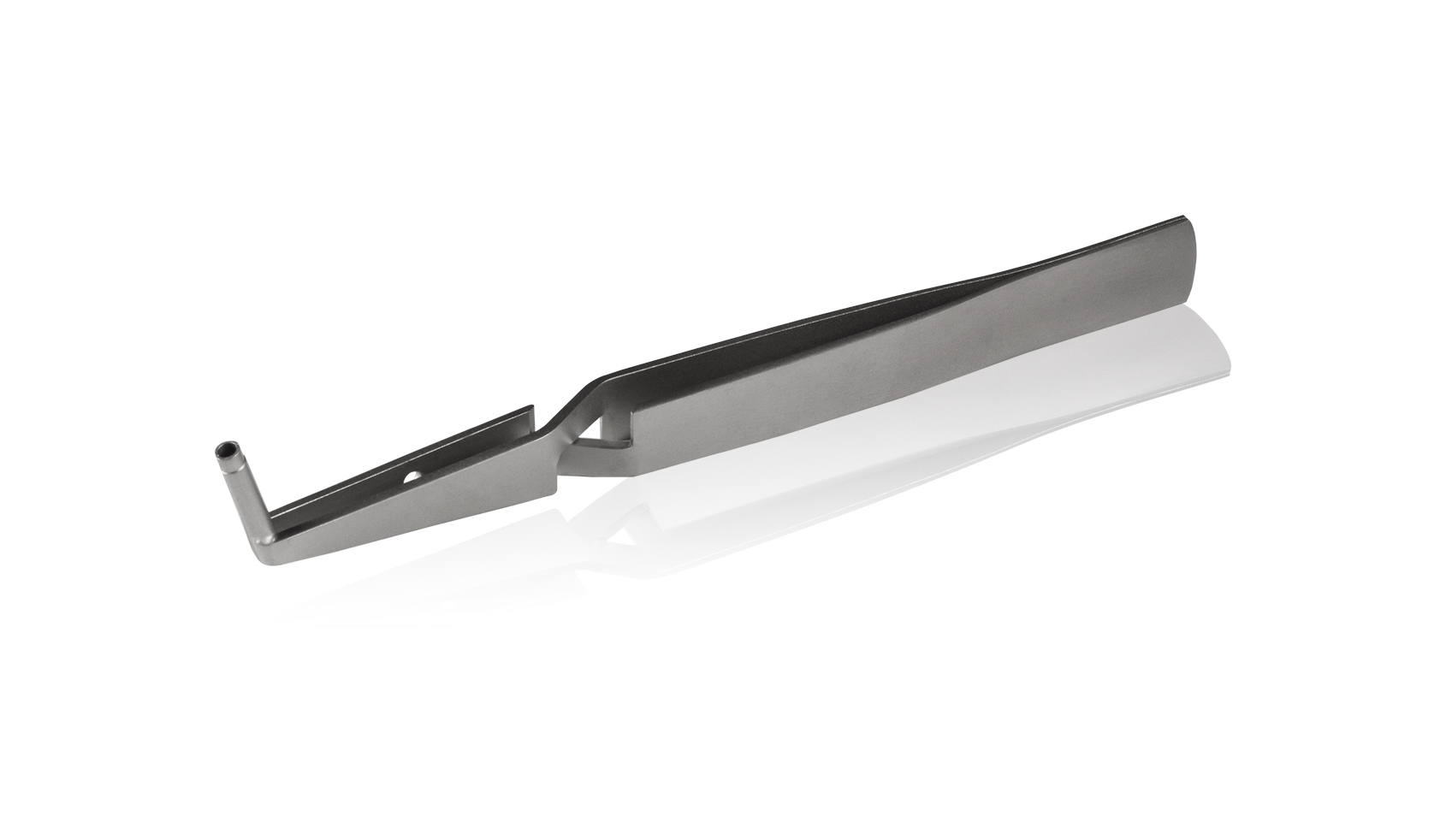

Insertion/Extraction Tweezers - Antimagnetic/Anti-acid SS - tips: eliminate wicking, protect plastic insulation on wire and actr like a heatsink while soldering. OAL: 120mm
Insertion tweezers for the perfect insertion of electrical connector contacts which meet military specifications as well as industrial ones. Exists in 31 standard types. On request, special sizes available.
| Tips type | fine |
|---|---|
| Curved / angled / bent tip | Yes |
| Reverse action | Yes |
| Serrated handle | No |
| Serrated inner side | No |
| ESD safe | No |
| Coating | sandblasted |
| Photo | Article | ESD safe | OAL product (mm - in) | Tips thickness A (mm - in) | Tips width B (mm - in) |
|---|---|---|---|---|---|
|
Tweezers DA/2 | No | 160 - 6,3 | 2,1 - 0,082 | 10,5 - 0,41 |
|
Tweezers C44 SA | No | 125 - 4,92 | 2,1 - 0,082 | 10,5 - 0,41 |
|
|
Tweezers C46 SA | No | 125 - 4,92 | 2,1 - 0,082 | 10,5 - 0,41 |
